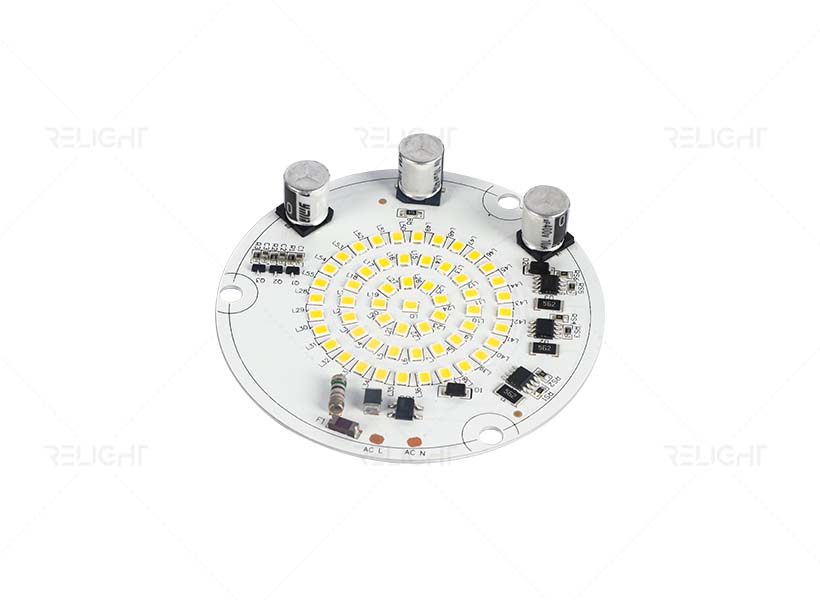

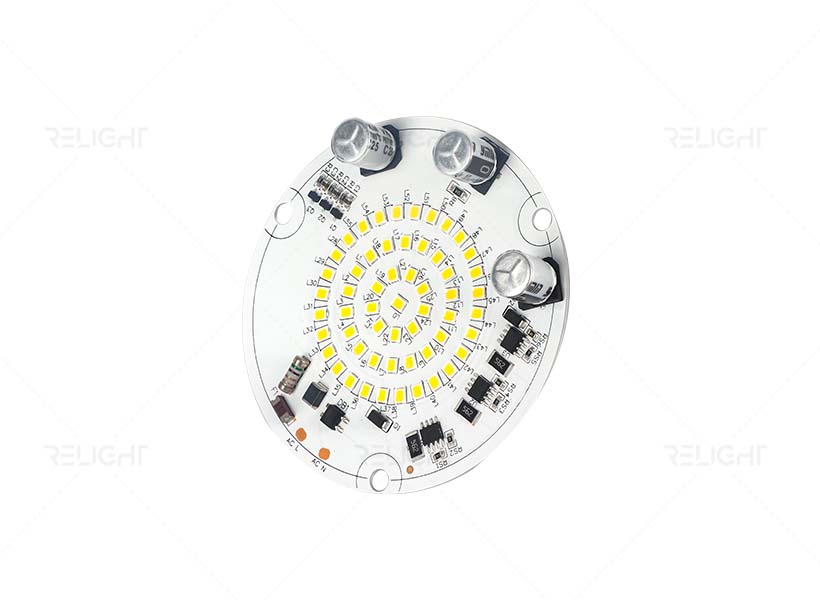

DOB-112mm

  • Flicker-Free & Universal Dimming Solution
  • TRIAC Dimming Compliant with Group Control Sync
  • Conducted Emission Passed
  • Beam Distribution Tunable for Recessed Housing Constraints
  • Harmonic Current Compliant
Product Specifications
ODM Customization

Product Description

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - Lm Lm/W K - -
RL-HMD112A8401H025-827FF Ø112 230 25 0.9 2750 110 2700 80 TRIAC
RL-HMD112A8401H025-830FF Ø112 230 25 0.9 2875 115 3000 80 TRIAC
RL-HMD112A8401H025-840FF Ø112 230 25 0.9 3000 120 4000 80 TRIAC
RL-HMD112A8401H025-850FF Ø112 230 25 0.9 3000 120 5000 80 TRIAC
RL-HMD112A8401H025-865FF Ø112 230 25 0.9 3000 120 6500 80 TRIAC
