Home - Product - Led module - AC Round Module Series

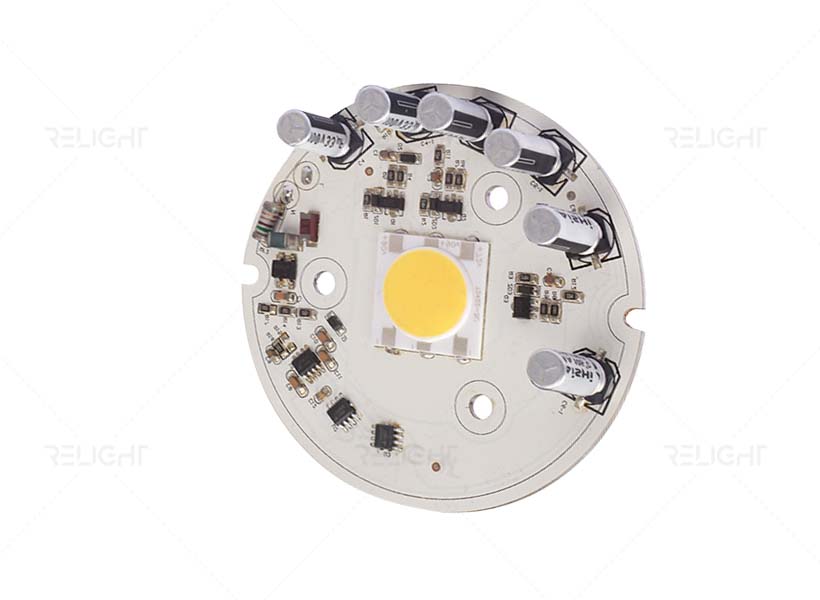

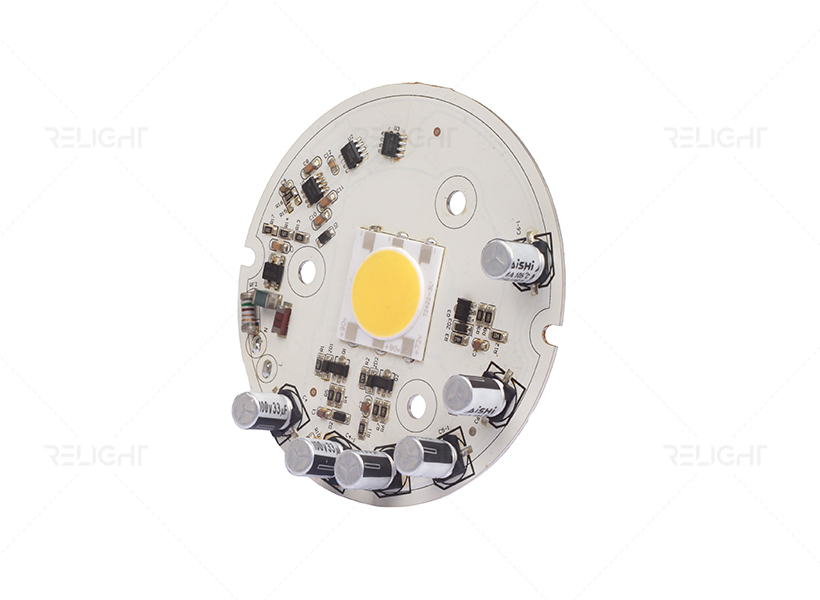

DOB-90mm

  • Compact Light Source: Ø10mm Emitting Surface
  • TRIAC Dimmable
  • Flicker-Free
  • THD Compliant, Surge Immunity Passed, Conducted Emission Passed
Product Specifications
ODM Customization

Product Description

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - Lm Lm/W K - -
RL-LMD90A2802H030-827FF Ø90 230 30 0.95 2700 90 2700 80 TRIAC
RL-LMD90A2802H030-830FF Ø90 230 30 0.95 2850 95 3000 80 TRIAC
RL-LMD90A2802H030-840FF Ø90 230 30 0.95 3000 100 4000 80 TRIAC
RL-LMD90A2802H030-850FF Ø90 230 30 0.95 3000 100 5000 80 TRIAC
RL-LMD90A2802H030-865FF Ø90 230 30 0.95 3000 100 6500 80 TRIAC
