Home - Product - Led module - AC Round Module Series

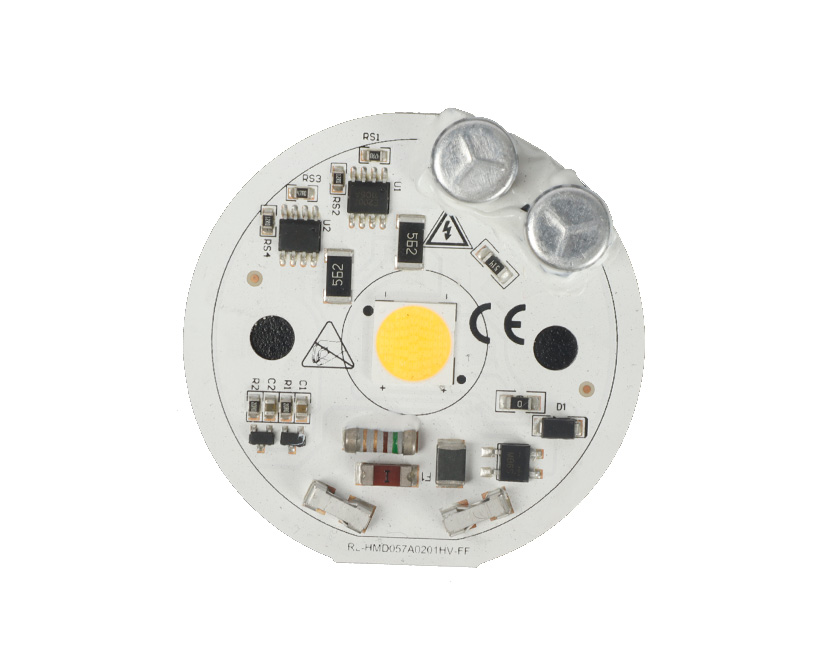

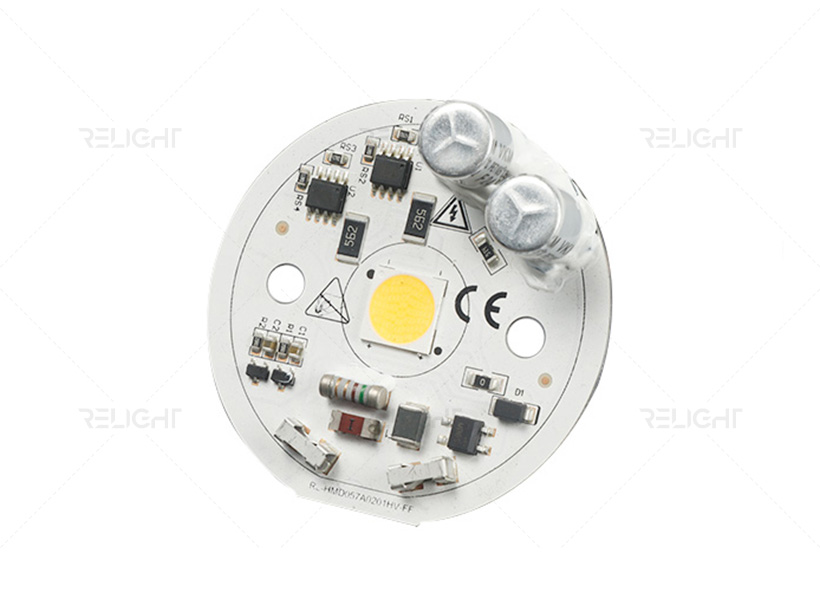

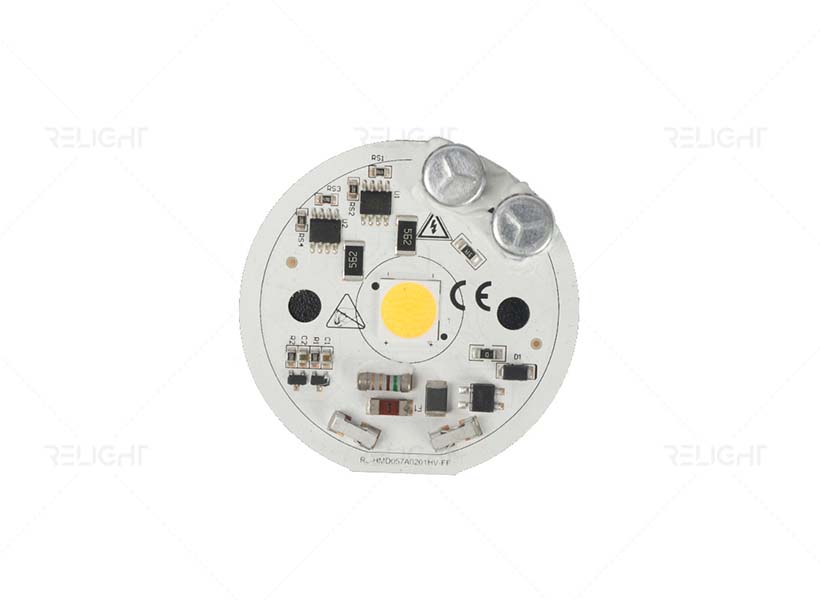

DOB-57mm

  • Compact Light Source: Ø10mm Emitting Surface
  • TRIAC Dimmable
  • Flicker-Free
  • THD Compliant, Surge Immunity Passed, Conducted Emission Passed
Product Specifications
ODM Customization

Product Description

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - Lm Lm/W K - -
RL-LMD57A1A1AH015-827FF Ø57 230 15 0.9 1500 100 2700 80 TRIAC
RL-LMD57A1A1AH015-830FF Ø57 230 15 0.9 1575 105 3000 80 TRIAC
RL-LMD57A1A1AH015-840FF Ø57 230 15 0.9 1650 110 4000 80 TRIAC
RL-LMD57A1A1AH015-850FF Ø57 230 15 0.9 1650 110 5000 80 TRIAC
RL-LMD57A1A1AH015-865FF Ø57 230 15 0.9 1650 110 6500 80 TRIAC
