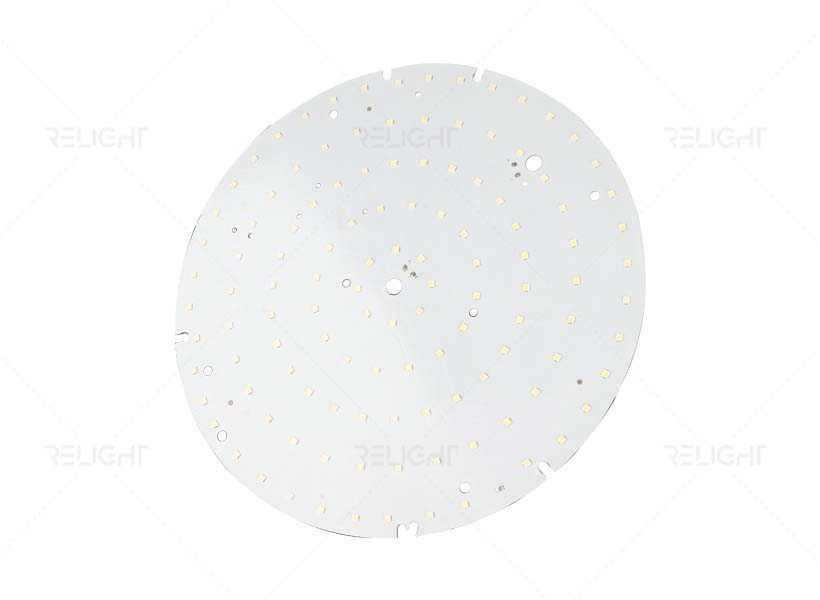

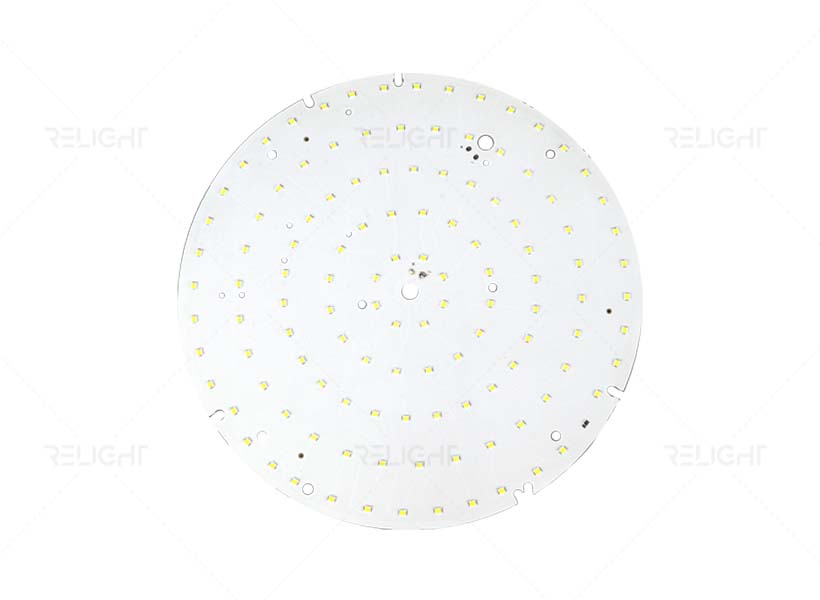

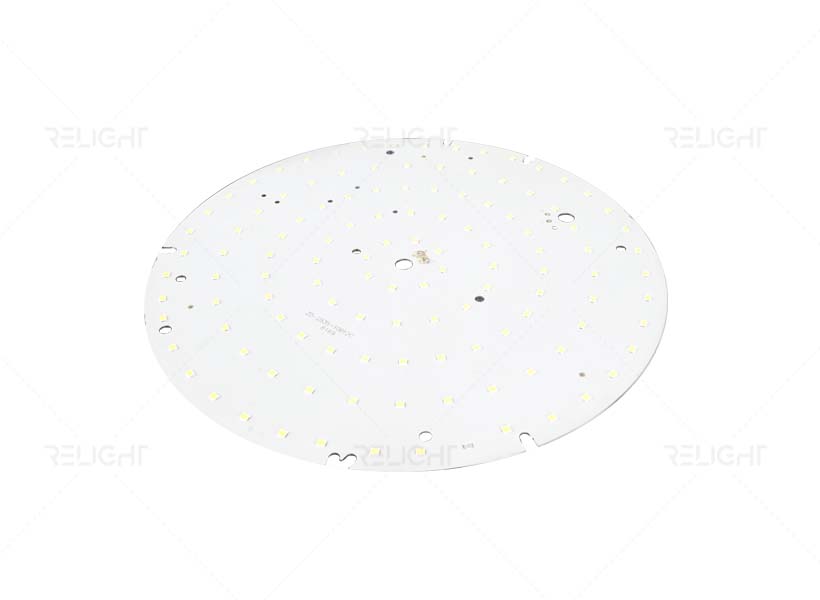

Zhaga Round Series

  • 210 lm/W High Efficacy
  • Quick-Connect Terminal
  • Ø160mm & Ø305mm Zhaga Standards
  • SELV Power Supply
Product Specifications
ODM Customization

Product Description

P/N Size Voltage -Vdc Current -mA Power -W Flux Efficiency CCT CRI
mm Typ Max Typ Max Typ Max Lm Lm/W K -
RL-CMD160A1308H017-827 D160 34.5 37.1 500 1000 17.25 37.1 3100 180 2700 80
RL-CMD160A1308H017-830 D160 34.5 37.1 500 1000 17.25 37.1 3277 190 3000 80
RL-CMD160A1308H017-840 D160 34.5 37.1 500 1000 17.25 37.1 3450 200 4000 80
RL-CMD160A1308H017-850 D160 34.5 37.1 500 1000 17.25 37.1 3450 200 5000 80
RL-CMD160A1308H017-865 D160 34.5 37.1 500 1000 17.25 37.1 3450 200 6500 80
RL-CMD160A1308H017-927 D160 34.5 37.1 500 1000 17.25 37.1 3100 165 2700 80
RL-CMD160A1308H017-930 D160 34.5 37.1 500 1000 17.25 37.1 3018 175 3000 80
RL-CMD160A1308H017-940 D160 34.5 37.1 500 1000 17.25 37.1 3191 185 4000 80
RL-CMD160A1308H017-950 D160 34.5 37.1 500 1000 17.25 37.1 3191 185 5000 80
RL-CMD160A1308H017-965 D160 34.5 37.1 500 1000 17.25 37.1 3191 185 6500 80
RL-CMD305A1312H026-827 D305 34.5 37.1 750 1500 26 55 4680 180 2700 80
RL-CMD305A1312H026-830 D305 34.5 37.1 750 1500 26 55 4940 190 3000 80
RL-CMD305A1312H026-840 D305 34.5 37.1 750 1500 26 55 5200 200 4000 80
RL-CMD305A1312H026-850 D305 34.5 37.1 750 1500 26 55 5200 200 5000 80
RL-CMD305A1312H026-865 D305 34.5 37.1 750 1500 26 55 5200 200 6500 80
RL-CMD305A1312H026-927 D305 34.5 37.1 750 1500 26 55 4290 165 2700 80
RL-CMD305A1312H026-927 D305 34.5 37.1 750 1500 26 55 4550 175 3000 80
RL-CMD305A1312H026-927 D305 34.5 37.1 750 1500 26 55 4810 185 4000 80
RL-CMD305A1312H026-927 D305 34.5 37.1 750 1500 26 55 4810 185 5000 80
RL-CMD305A1312H026-927 D305 34.5 37.1 750 1500 26 55 4810 185 6500 80
