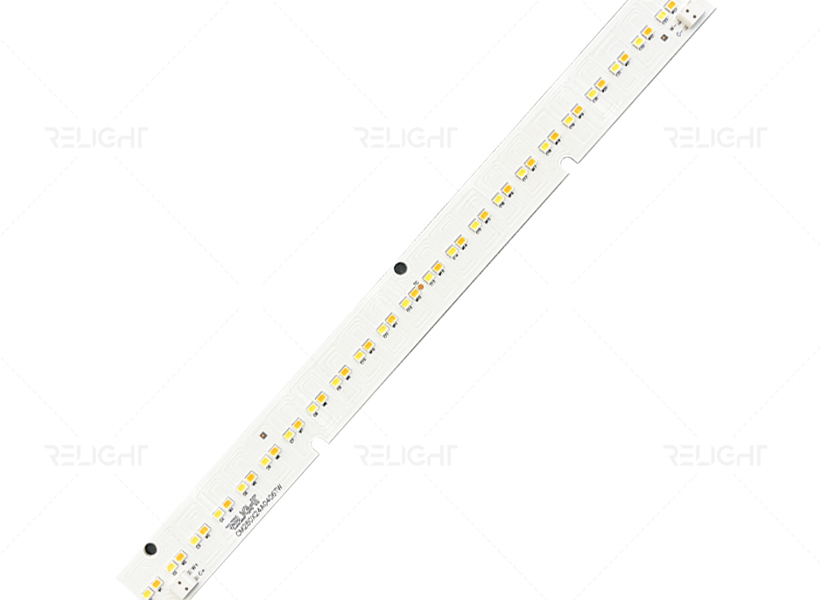

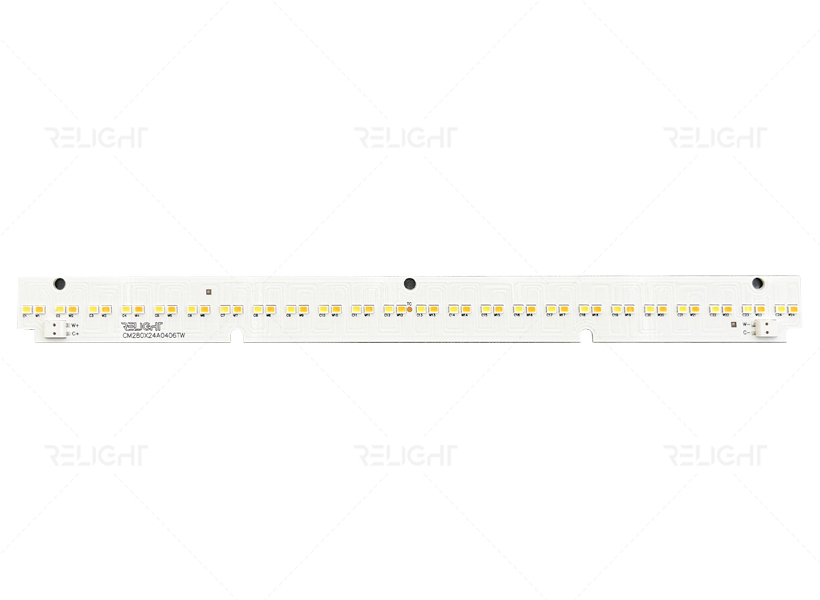

24mm Wide Zhaga Series - Monochrome

  • Ultra-High Efficacy: 190 lm/W

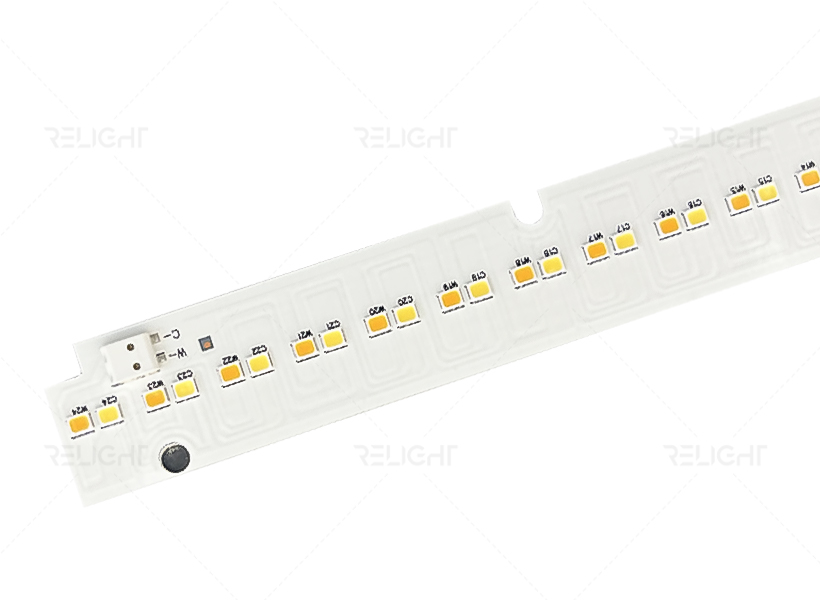

  • Tool-Free Quick Connect Terminals
  • Zhaga Book-20 Compliant Design
  • Compatible with Isolated (Parallel) & Non-Isolated (Series) Connection
Product Specifications
ODM Customization

Product Description

P/N Size Voltage -Vdc Current -mA Power -W Flux Efficiency CCT CRI
  mm Typ Max Typ Max Typ Max Lm Lm/W K -
RL-CM560x24A1604H012-840 560*24 47 49 300 400 14.1 19.6 2280 190 4000 80
RL-CM560x24A1604H012-940 560*24 47 49 300 400 14.1 19.6 2040 170 4000 90
RL-CM280x24A0804H006-840 280*24 23 25 300 400 6.9 10 1140 190 4000 80
RL-CM280x24A0804H006-940 280*24 23 25 300 400 6.9 10 1020 170 4000 90
RL-CM140x24A0404H003-840 140*24 11 13 300 400 3.3 5.2 570 190 4000 80
RL-CM140x24A0404H003-940 140*24 11 13 300 400 3.3 5.2 510 170 4000 90
