- Ultra-High Efficacy: 210 lm/W
- Tool-Free Quick Connect Terminals
- Zhaga Book-20 Compliant Design
- Compatible with Isolated (Parallel) & Non-Isolated (Series) Connection
20mm Wide Zhaga Series - Monochrome
ODM Customization
Product Description
| P/N | Size | Voltage -Vdc | Current -mA | Power -W | Flux | Efficiency | CCT | CRI | |||
| mm | Typ | Max | Typ | Max | Typ | Max | Lm | Lm/W | K | - | |

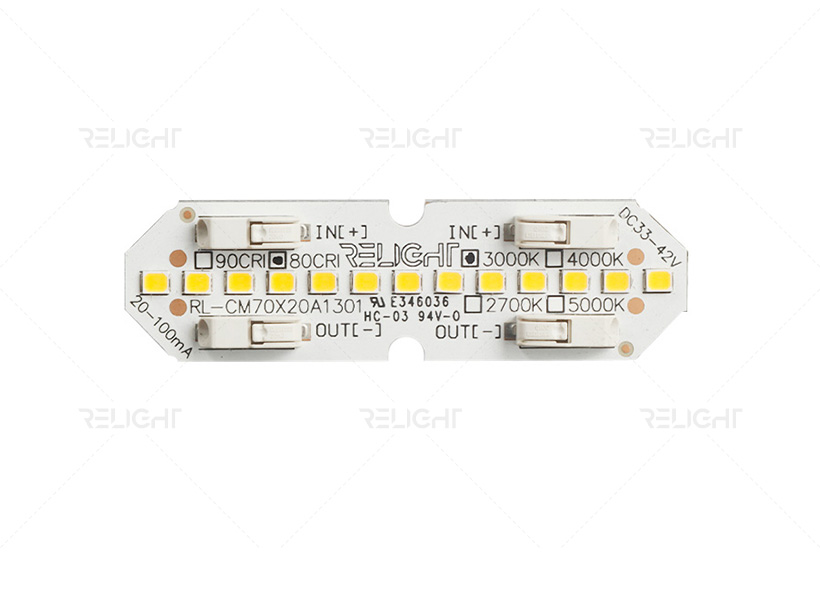

| RL-CM70x20A1301H001-827 | 70*20 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 270 | 180 | 2700 | 80 |
| RL-CM70x20A1301H001-830 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 285 | 190 | 3000 | ||
| RL-CM70x20A1301H001-840 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 315 | 200 | 4000 | ||
| RL-CM70x20A1301H001-850 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 315 | 200 | 5000 | ||
| RL-CM70x20A1301H001-857 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 315 | 200 | 5700 | ||
| RL-CM70x20A1301H001-865 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 315 | 200 | 6500 | ||
| RL-CM70x20A1301H001-927 | 70*20 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 270 | 150 | 2700 | 90 |
| RL-CM70x20A1301H001-930 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 285 | 160 | 3000 | ||
| RL-CM70x20A1301H001-940 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 315 | 170 | 4000 | ||
| RL-CM70x20A1301H001-950 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 315 | 170 | 5000 | ||
| RL-CM70x20A1301H001-957 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 315 | 170 | 5700 | ||
| RL-CM70x20A1301H001-965 | 34.5 | 37.1 | 45 | 90 | 1.5 | 3.2 | 315 | 170 | 6500 | ||
| RL-CM280x20A1303H006-827 | 280*20 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 1100 | 180 | 2700 | 80 |
| RL-CM280x20A1303H006-830 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 1160 | 190 | 3000 | ||
| RL-CM280x20A1303H006-840 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 1230 | 200 | 4000 | ||
| RL-CM280x20A1303H006-850 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 1230 | 200 | 5000 | ||
| RL-CM280x20A1303H006-857 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 1230 | 200 | 5700 | ||
| RL-CM280x20A1303H006-865 | 35.1 | 37.1 | 175 | 340 | 6.1 | 12.7 | 1230 | 200 | 6500 | ||
| RL-CM280x20A1303H006-927 | 280*20 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 915 | 150 | 2700 | 90 |
| RL-CM280x20A1303H006-930 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 975 | 160 | 3000 | ||
| RL-CM280x20A1303H006-940 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 1035 | 170 | 4000 | ||
| RL-CM280x20A1303H006-950 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 1035 | 170 | 5000 | ||
| RL-CM280x20A1303H006-957 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 1035 | 170 | 5700 | ||
| RL-CM280x20A1303H006-965 | 35.1 | 37.1 | 175 | 340 | 6.1 | 12.7 | 1035 | 170 | 6500 | ||
| RL-CM560x20A1306H012-827 | 560*20 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2215 | 180 | 2700 | 80 |
| RL-CM560x20A1306H012-830 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2300 | 190 | 3000 | ||
| RL-CM560x20A1306H012-840 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2475 | 200 | 4000 | ||
| RL-CM560x20A1306H012-850 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2475 | 200 | 5000 | ||
| RL-CM560x20A1306H012-857 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2475 | 200 | 5700 | ||
| RL-CM560x20A1306H012-865 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2475 | 200 | 6500 | ||
| RL-CM560x20A1306H012-927 | 560*20 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 1845 | 150 | 2700 | 90 |
| RL-CM560x20A1306H012-930 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 1965 | 160 | 3000 | ||
| RL-CM560x20A1306H012-940 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2090 | 170 | 4000 | ||
| RL-CM560x20A1306H012-950 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2090 | 170 | 5000 | ||
| RL-CM560x20A1306H012-957 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2090 | 170 | 5700 | ||
| RL-CM560x20A1306H012-965 | 35.1 | 37.1 | 350 | 700 | 12.3 | 25.7 | 2090 | 170 | 6500 | ||
