- Ultra-High Efficacy: 190 lm/W

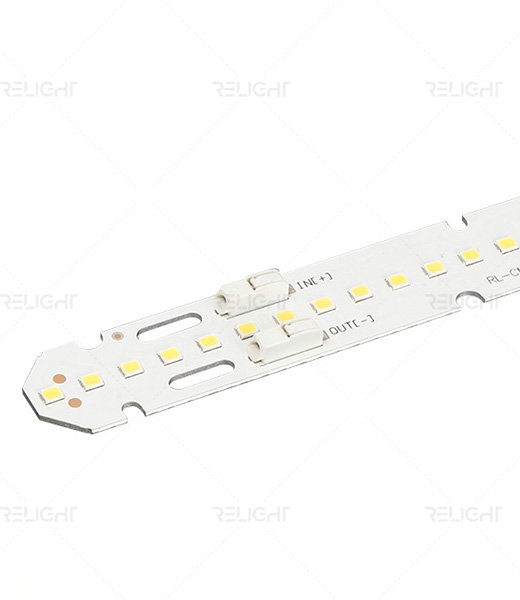

- Tool-Free Quick Connect Terminals
- Zhaga Book-20 Compliant Design
- Compatible with Isolated (Parallel) & Non-Isolated (Series) Connection

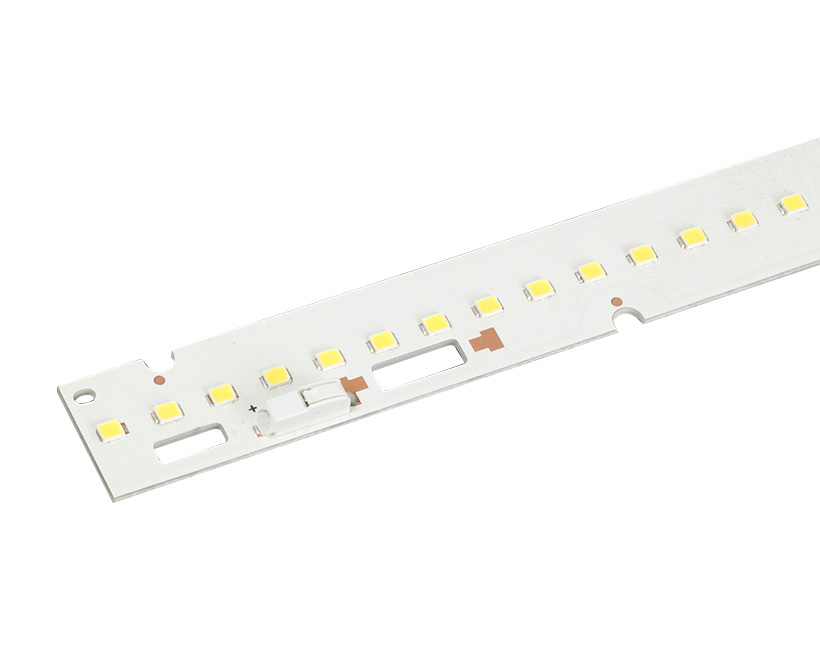

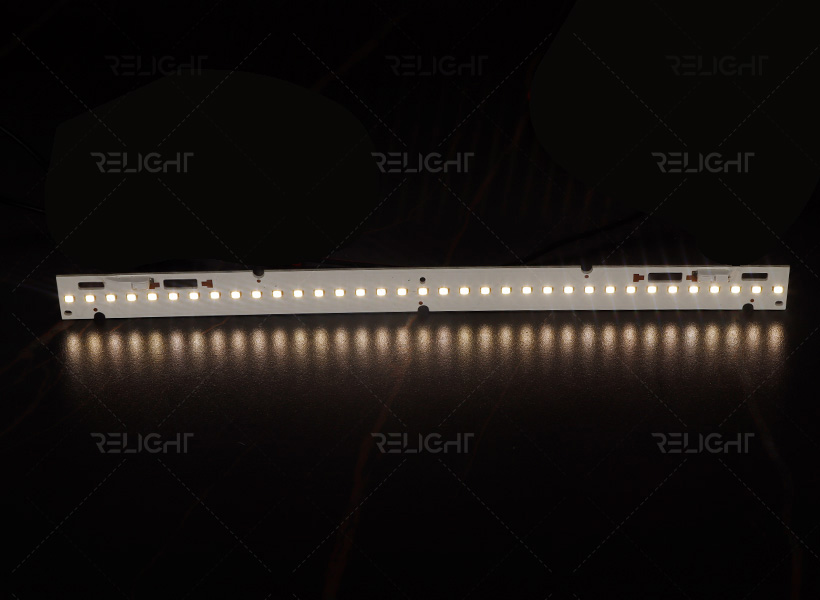

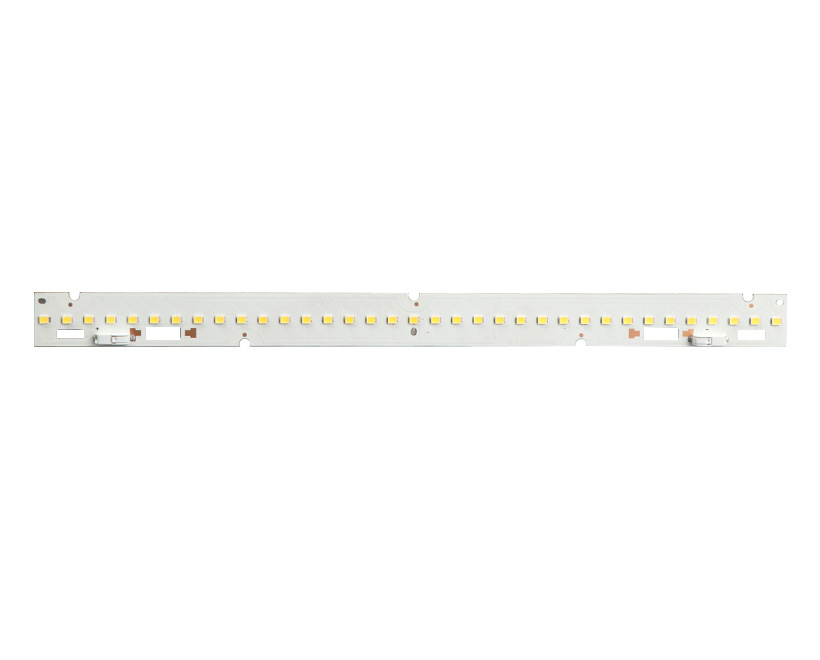

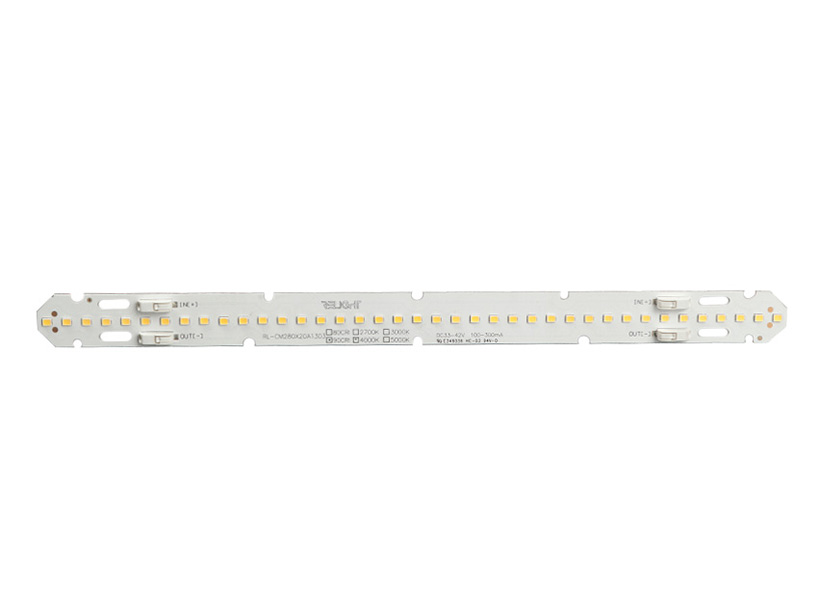

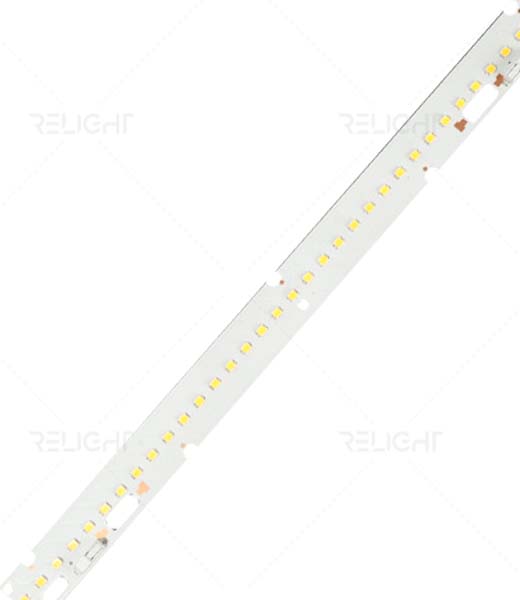

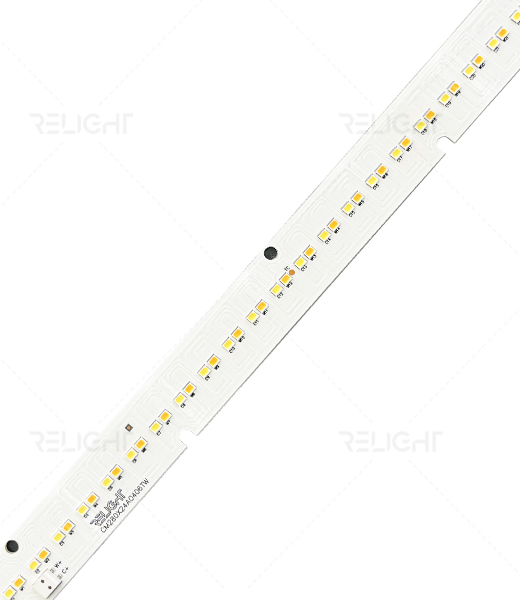

20mm Wide Zhaga Series - Dual CCT
ODM Customization
Product Description
| P/N | Size | Voltage -Vdc | Current -mA | Power -W | Flux | Efficiency | CCT | CRI | |||
| mm | Typ | Max | Typ | Max | Typ | Max | Lm | Lm/W | K | - | |
| RL-CM280x20A1302H006-82765 | 280*20 | 35.1 | 37.1 | 88 | 175 | 3 | 6.1 | 480 | 160 | 2700 | 80 |
| 35.1 | 37.1 | 88 | 175 | 3 | 6.1 | 540 | 180 | 6500 | |||
| RL-CM280x20A1302H006-83050 | 35.1 | 37.1 | 88 | 175 | 3 | 6.1 | 510 | 170 | 3000 | ||
| 35.1 | 37.1 | 88 | 175 | 3 | 6.1 | 540 | 180 | 4000 | |||
| RL-CM280x20A1302H003-92765 | 280*20 | 35.1 | 37.1 | 88 | 175 | 3 | 6.1 | 480 | 145 | 2700 | 90 |
| 35.1 | 37.1 | 88 | 175 | 3 | 6.1 | 540 | 160 | 6500 | |||
| RL-CM280x20A1302H003-93050 | 35.1 | 37.1 | 88 | 175 | 3 | 6.1 | 510 | 140 | 3000 | ||
| 35.1 | 37.1 | 88 | 175 | 3 | 6.1 | 540 | 160 | 4000 | |||
| RL-CM280x20A1303H003-82765 | 560*20 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 975 | 160 | 2700 | 80 |
| 35.1 | 37.1 | 175 | 340 | 6.1 | 12.7 | 1130 | 180 | 6500 | |||
| RL-CM280x20A1303H003-83050 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 1040 | 170 | 3000 | ||
| 35.1 | 37.1 | 175 | 340 | 6.1 | 12.7 | 1130 | 180 | 5000 | |||
| RL-CM560x20A1303H003-92765 | 560*20 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 885 | 145 | 2700 | 90 |
| 35.1 | 37.1 | 175 | 340 | 6.1 | 12.7 | 975 | 160 | 6500 | |||
| RL-CM560x20A1303H003-93050 | 35.1 | 37.1 | 175 | 350 | 6.1 | 12.7 | 915 | 150 | 3000 | ||
| 35.1 | 37.1 | 175 | 340 | 6.1 | 12.7 | 975 | 160 | 4000 | |||
