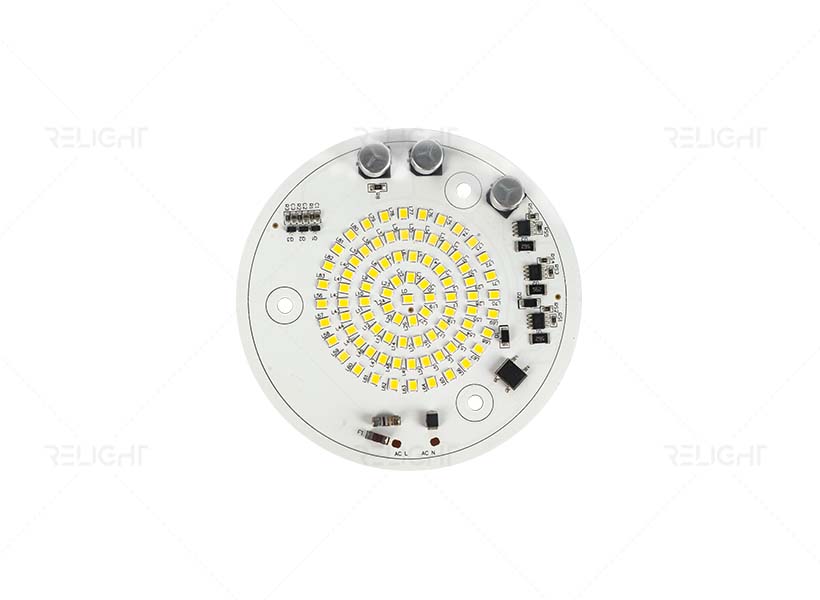

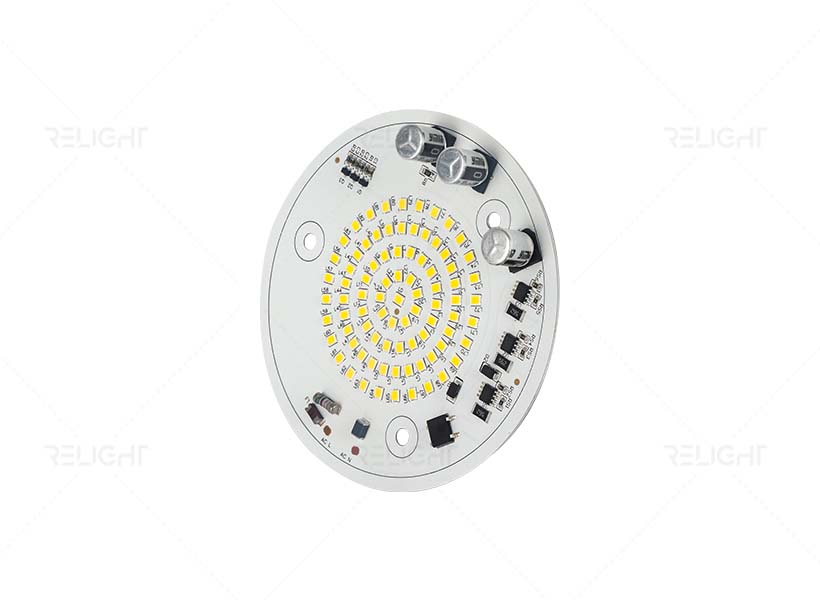

DOB-86mm

  • Flicker-Free & Universal Dimming Solution
  • TRIAC Dimming Compliant with Group Control Sync
  • Conducted Emission Passed
  • Beam Distribution Tunable for Recessed Housing Constraints
  • Harmonic Current Compliant
Product Specifications
ODM Customization

Product Description

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - Lm Lm/W K - -
RL-HMD86A2802H018-827FF Ø86 230 18 0.9 1980 110 2700 80 TRIAC
RL-HMD86A2802H018-830FF Ø86 230 18 0.9 2070 115 3000 80 TRIAC
RL-HMD86A2802H018-840FF Ø86 230 18 0.9 2160 120 4000 80 TRIAC
RL-HMD86A2802H018-850FF Ø86 230 18 0.9 2160 120 5000 80 TRIAC
RL-HMD86A2802H018-865FF Ø86 230 18 0.9 2160 120 6500 80 TRIAC
