Home - Product - Led module - AC Round Module Series

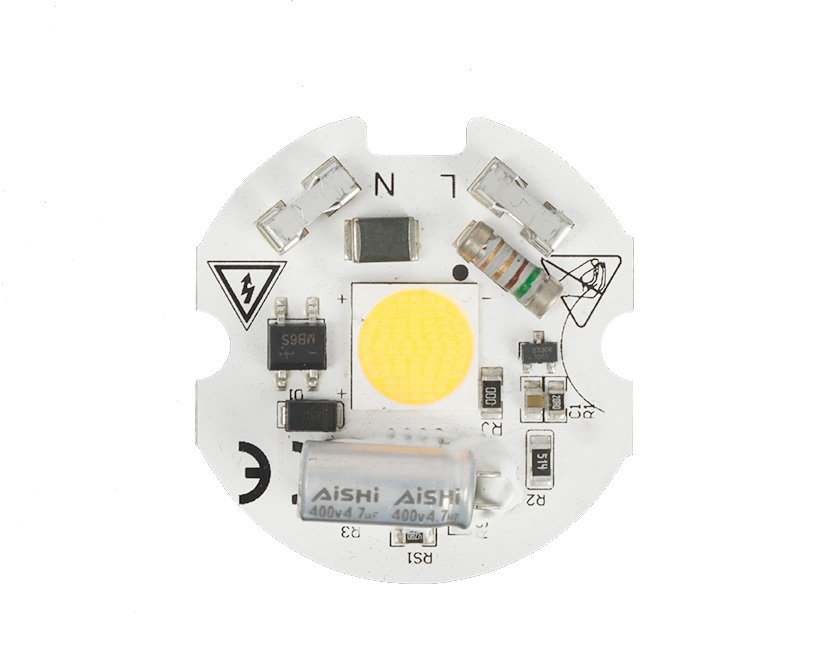

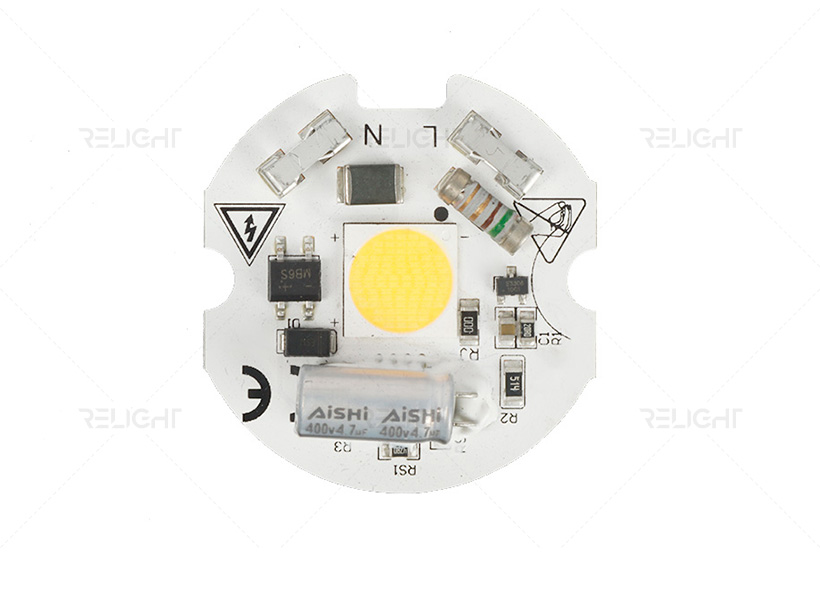

DOB-38mm

  • Compact Light Source: Ø10mm Emitting Surface
  • TRIAC Dimmable
  • Flicker-Free
  • THD Compliant, Surge Immunity Passed, Conducted Emission Passed
Product Specifications
ODM Customization

Product Description

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - Lm Lm/W K - -
RL-LMD38A1A1AH005-827FF Ø38 230 5 0.9 500 100 2700 80 TRIAC
RL-LMD38A1A1AH005-830FF Ø38 230 5 0.9 525 105 3000 80 TRIAC
RL-LMD38A1A1AH005-840FF Ø38 230 5 0.9 550 110 4000 80 TRIAC
RL-LMD38A1A1AH005-850FF Ø38 230 5 0.9 550 110 5000 80 TRIAC
RL-LMD38A1A1AH005-865FF Ø38 230 5 0.9 550 110 6500 80 TRIAC
