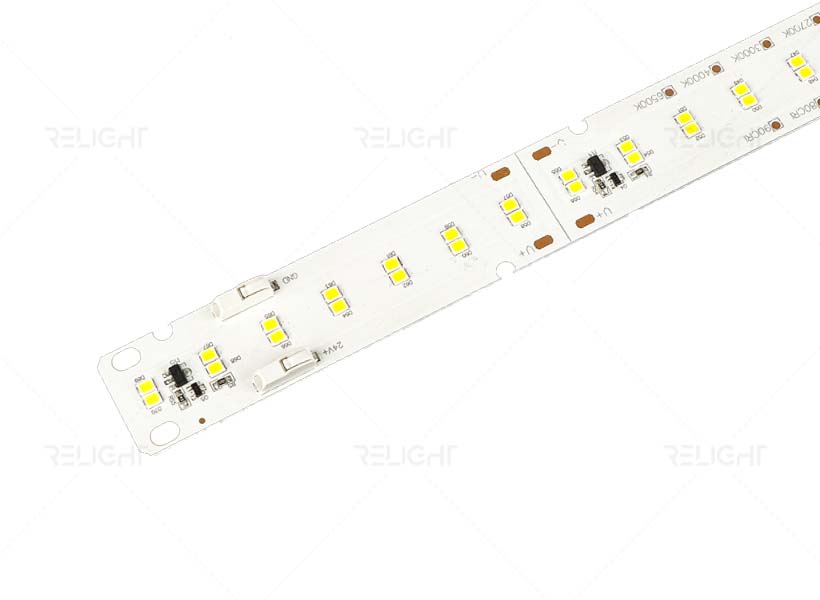

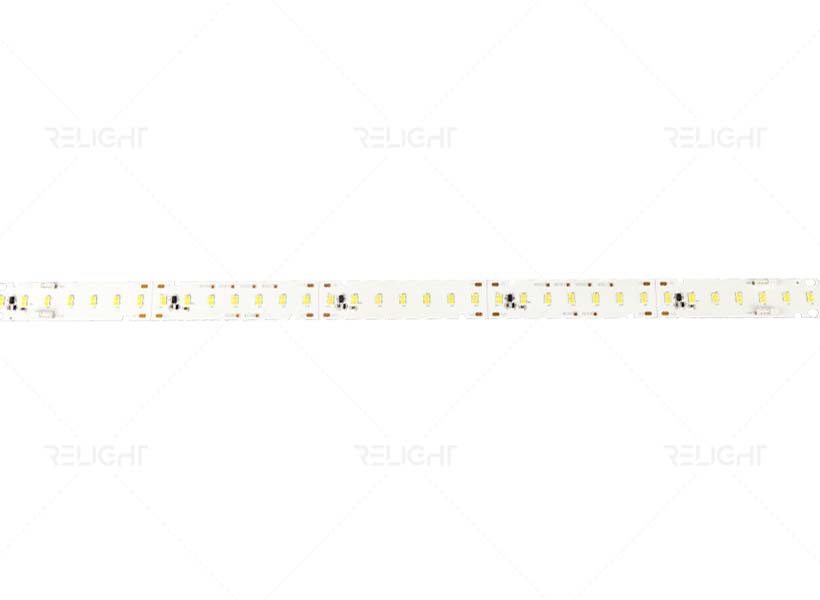

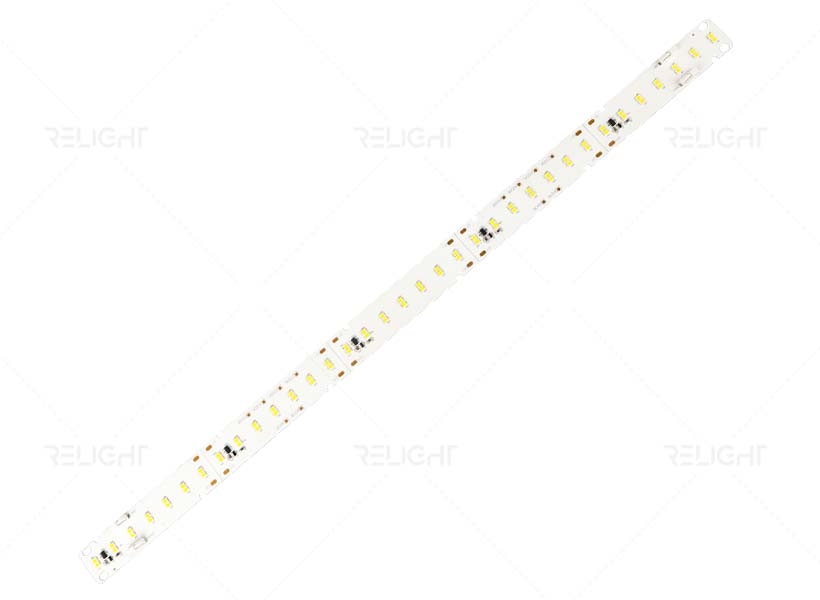

DC24V Linear Light Module

  • DC24V Linear Light Module
  • 160 lm/W High Efficacy
  • Constant Luminance Output ≤±3% @ 8m (Voltage Drop Controlled)
Product Specifications
ODM Customization

Product Description

P/N Size Voltage Current Power Flux Efficiency CCT CRI
mm VDC MA W Lm Lm/W K -
RL-VM600x24A0712H012-827 600*24 24 0.5 12 1740 145 2700 80
RL-VM600x24A0712H012-830 600*24 24 0.5 12 1800 150 3000 80
RL-VM600x24A0712H012-840 600*24 24 0.5 12 1860 155 4000 80
RL-VM600x24A0712H012-850 600*24 24 0.5 12 1860 155 5000 80
RL-VM600x24A0712H012-865 600*24 24 0.5 12 1860 155 6500 80
RL-VM500x24A0710H010-827 500*24 24 0.5 10 1450 145 2700 80
RL-VM600x24A0710H010-830 500*24 24 0.5 10 1500 150 3000 80
RL-VM600x24A0710H010-840 500*24 24 0.5 10 1550 155 4000 80
RL-VM600x24A0710H010-850 500*24 24 0.5 10 1550 155 5000 80
RL-VM600x24A0710H010-865 500*24 24 0.5 10 1550 155 6500 80
RL-VM100x24A0702H002-827 500*24 24 0.5 2 290 145 2700 80
RL-VM100x24A0702H002-830 500*24 24 0.5 2 300 150 3000 80
RL-VM100x24A0702H002-840 500*24 24 0.5 2 310 155 4000 80
RL-VM100x24A0702H002-850 500*24 24 0.5 2 310 155 5000 80
RL-VM100x24A0702H002-865 500*24 24 0.5 2 310 155 6500 80

Other Products

24mm Wide Zhaga Series - Dual CCT

24mm Wide Zhaga Series - Monochrome

20mm Wide Zhaga Series - Monochrome

ODM Customization
CC Mode
CV Mode
Power Consumption
CCT
Chromaticity
CRI
Dimensions
Dimming
Single Board
Number of boards in one luminaire
LED Source
IP Rating
Certifications
Ink Color
Shipping
Quantity
