- Compatible with TRIAC dimming.
- IEEE-compliant low-flicker solution for North America.
- THD compliance, surge withstand, conducted emissions compliance.

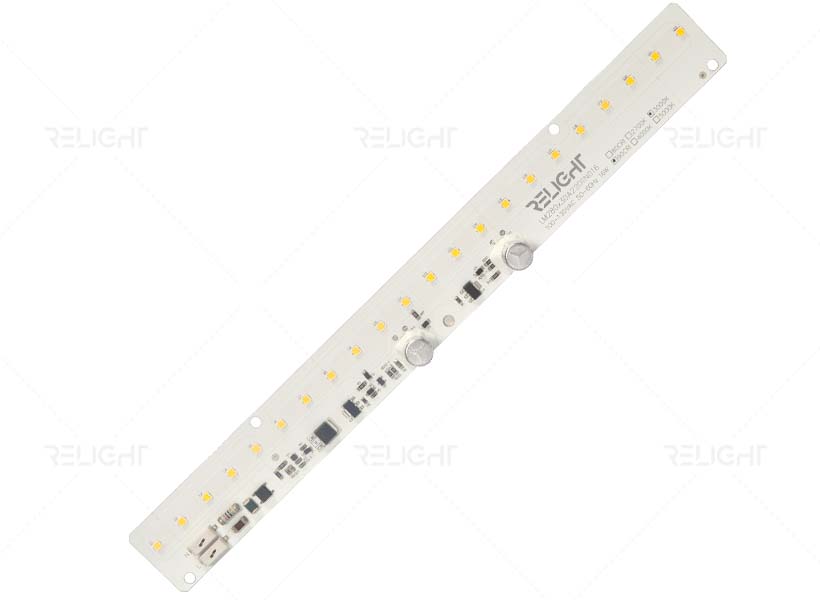

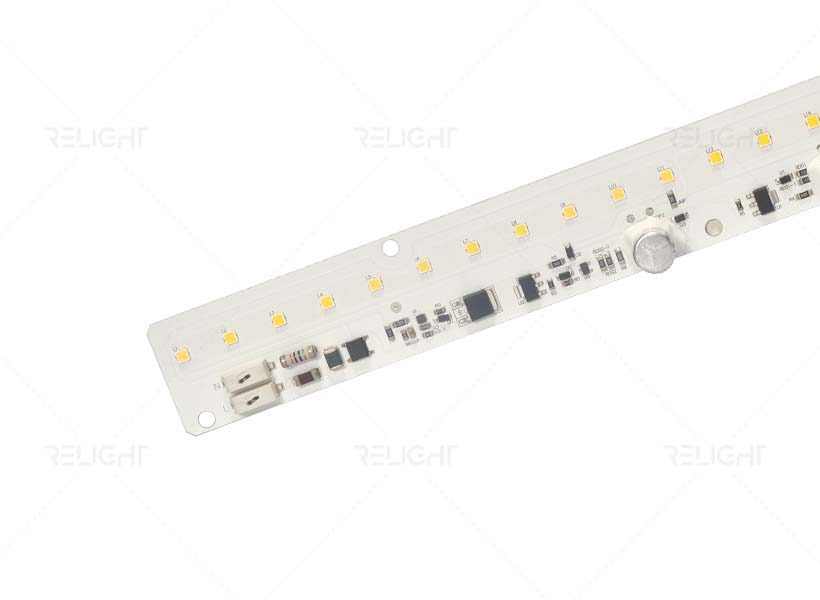

FB Linear Series
ODM Customization
Product Description
| P/N | Size | Input | Power | PF | Flux | Efficiency | CCT | CRI | Dimming |
| mm | Vac | W | - | LM | LM/W | K | - | - | |
| RL-LM280X30A2201N009-827FB | 280×30 | 120 | 16 | 0.95 | 1440 | 90 | 2700 | 80 | TRIAC |
| RL-LM280X30A2201N009-830FB | 1520 | 95 | 3000 | ||||||
| RL-LM280X30A2201N009-840FB | 1600 | 100 | 4000 | ||||||
| RL-LM280X30A2201N009-850FB | 1600 | 100 | 5000 | ||||||
| RL-LM280X30A2201N009-927FB | 280×30 | 120 | 16 | 0.95 | 1328 | 83 | 2700 | 90 | TRIAC |
| RL-LM280X30A2201N009-930FB | 1424 | 89 | 3000 | ||||||
| RL-LM280X30A2201N009-940FB | 1520 | 95 | 4000 | ||||||
| RL-LM280X30A2201N009-950FB | 1520 | 95 | 5000 |
