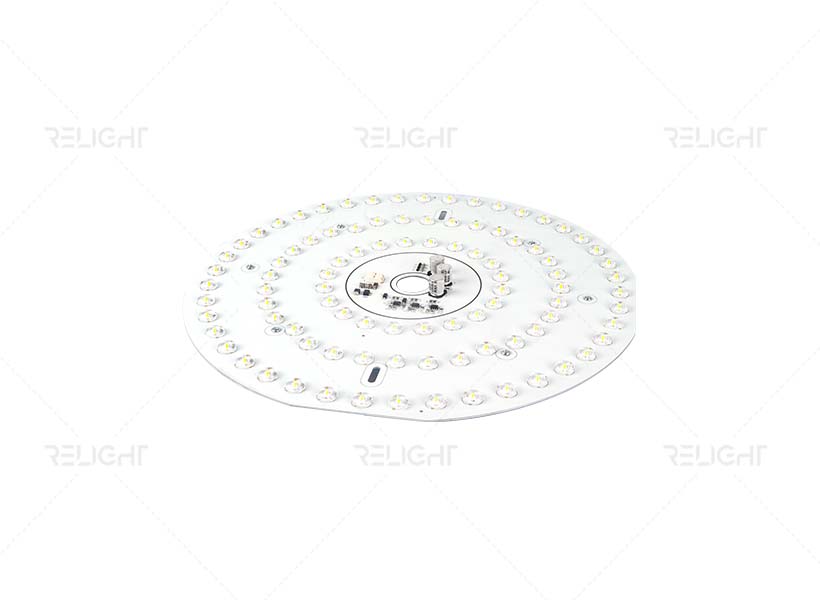

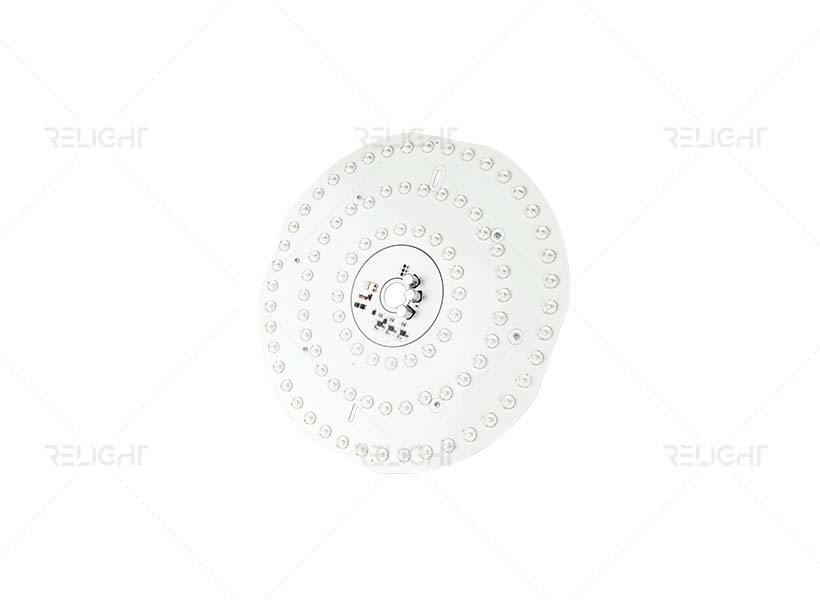

Ceiling Lamp Module D315

  • High-Performance Dimming
  • Various CCT available：3000+6500K
  • TRIAC dimmable
  • Solutions for Down light/Ceiling light
Product Specifications
ODM Customization

Product Description

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - Lm Lm/W K - -
RL-HMD315A4702H024-827FF Ø315 230 24 0.8 2880 120 2700 80 TRIAC
RL-HMD315A4702H024-830FF Ø315 230 24 0.8 3000 125 3000 80 TRIAC
RL-HMD315A4702H024-840FF Ø315 230 24 0.8 3120 130 4000 80 TRIAC
RL-HMD315A4702H024-850FF Ø315 230 24 0.8 3120 130 5000 80 TRIAC
RL-HMD315A4702H024-865FF Ø315 230 24 0.8 3120 130 6500 80 TRIAC

Other Products

Ceiling Lamp Module D130

Ceiling Lamp Module D160

Ceiling Lamp Module D164

ODM Customization
Input Voltage
Power consumption
CCT
Chromaticity
CRI
Dimensions
Dimming
Flicker
LED Source
IP Rating
Certifications
Ink Color
Shipping
Quantity
