Home - Product - Led module - AC Round Module Series

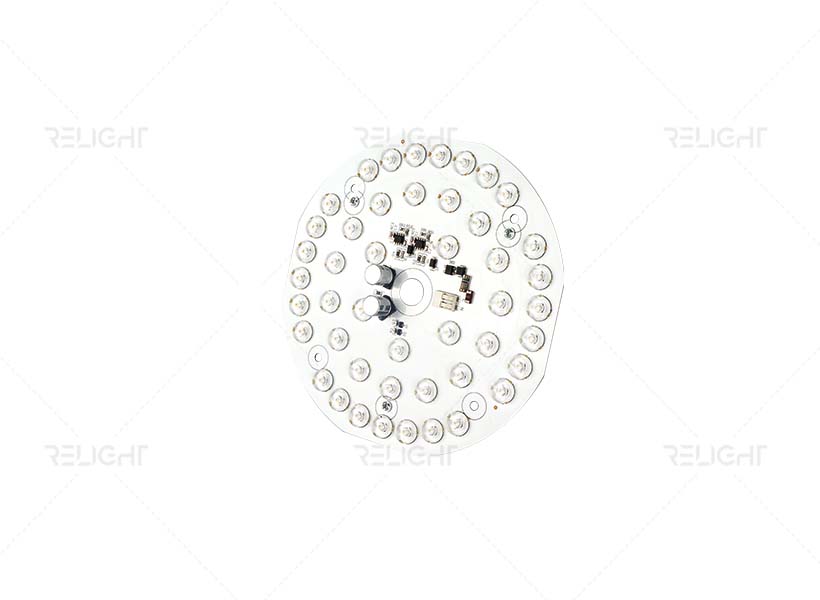

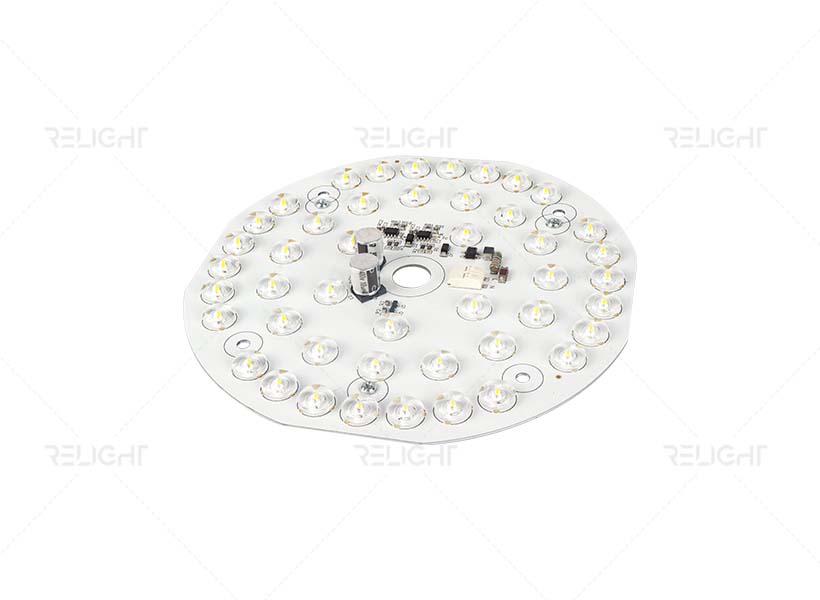

Ceiling Lamp Module D164

  • High-Performance Dimming
  • Various CCT available：3000+6500K
  • TRIAC dimmable
  • Solutions for Down light/Ceiling light
Product Specifications
ODM Customization

Product Description

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - Lm Lm/W K - -
RL-HMD164A4601H018-827FF Ø164 230 18 0.8 2070 115 2700 80 TRIAC
RL-HMD164A4601H018-830FF Ø164 230 18 0.8 2160 120 3000 80 TRIAC
RL-HMD164A4601H018-840FF Ø164 230 18 0.8 2250 125 4000 80 TRIAC
RL-HMD164A4601H018-850FF Ø164 230 18 0.8 2225 125 5000 80 TRIAC
RL-HMD164A4601H018-865FF Ø164 230 18 0.8 2225 125 6500 80 TRIAC
