Home - Product - Led module - AC Linear Module Series

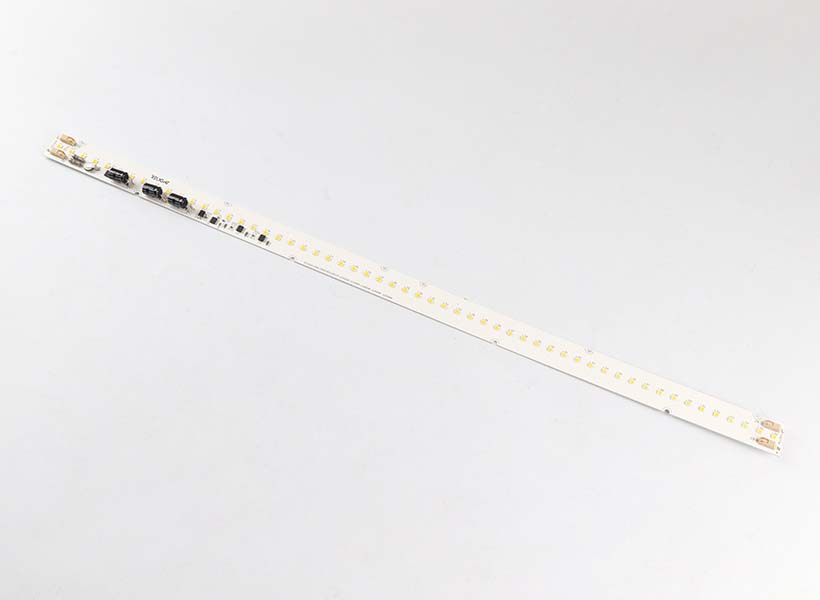

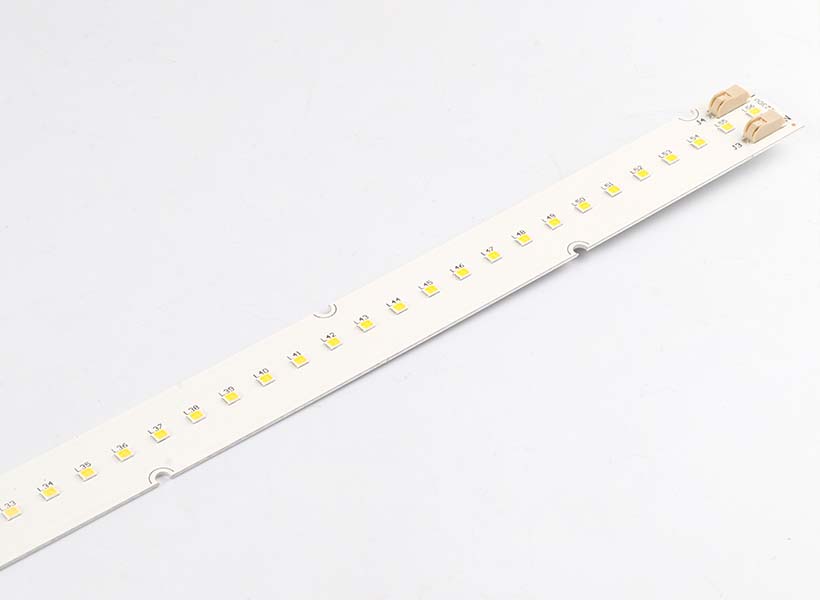

AC High Efficiency Linear LED Light

  • 160 lm/W High Efficacy
  • Macadam 3 steps color bin
  • Flicker-free
  • LED panel is directly connected to AC200-240V
Product Specifications
ODM Customization

Product Description

P/N Size Voltage PF Power Flux Efficiency CCT CRI
mm Vdc - W Lm Lm/W K -
RL-HM280X24A2801H016-827N 280X24 200-240 ＞0.5 16 2080 150 2700 80
RL-HM280X24A2801H016-830N 2240 150 3000 80
RL-HM280X24A2801H016-840N 2400 150 4000 80
RL-HM280X24A2801H016-850N 2400 150 5000 80
RL-HM280X24A2801H016-865N 2400 150 6500 80
RL-HM560X24A2802H024-827N 560x24 200-240 ＞0.5 24 3120 130 2700 80
RL-HM560X24A2802H024-830N 3360 140 3000 80
RL-HM560X24A2802H024-840N 3600 150 4000 80
RL-HM560X24A2802H024-850N 3600 150 5000 80
RL-HM560X24A2802H024-865N 3600 150 6500 80
RL-HM980X24A2803H032-827N 980x24 200-240 ＞0.5 32 4160 130 2700 80
RL-HM980X24A2803H032-830N 4480 140 3000 80
RL-HM980X24A2803H032-840N 4800 150 4000 80
RL-HM980X24A2803H032-850N 4800 150 5000 80
RL-HM980X24A2803H032-865N 4800 150 6500 80
