Home - Product - Led module - AC Round Module Series

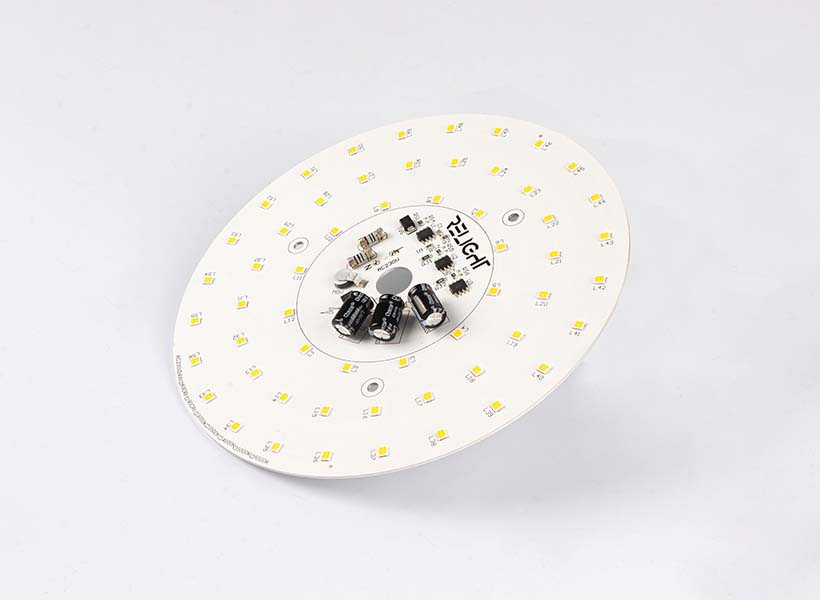

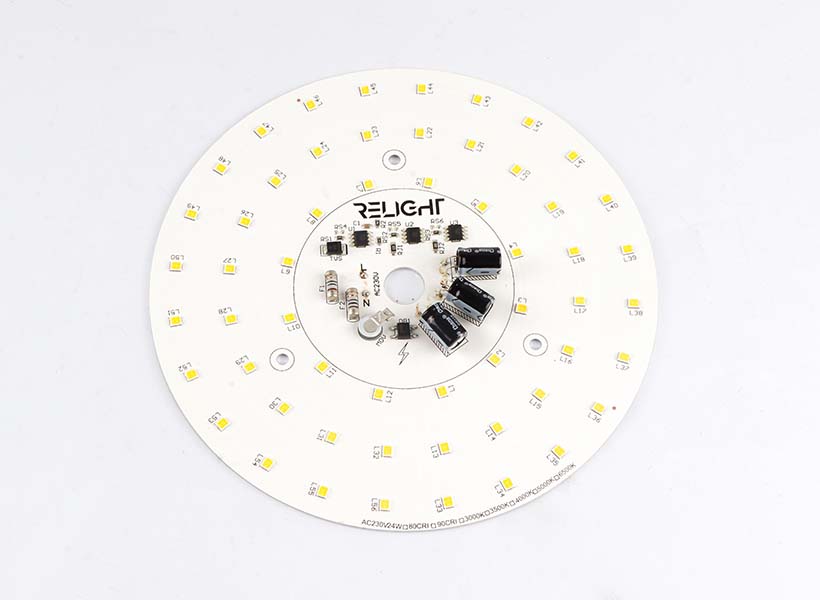

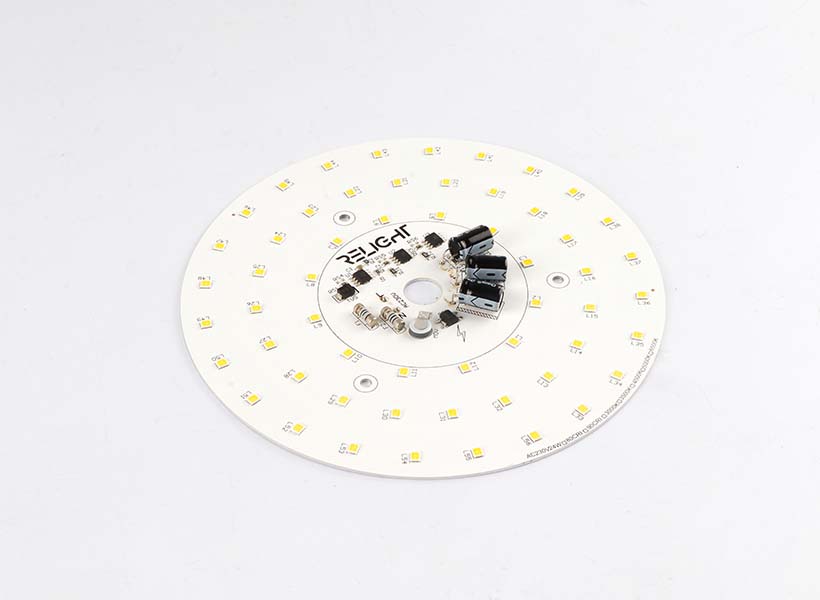

AC High Efficacy Ceiling Lamp Module

  • 160 lm/W High Efficacy
  • Macadam 3 steps color bin
  • Flicker-free
  • Solutions for spot light / down light / ceiling light / UFO light
Product Specifications
ODM Customization

Product Description

P/N Size Voltage PF Power Flux Efficiency CCT CRI
mm Vdc - W Lm Lm/W K -
RL-HMD70A1401H08-827N D70 200-240 ＞0.5 8 1040 130 2700 80
RL-HMD70A1401H08-830N 1120 140 3000 80
RL-HMD70A1401H08-840N 1200 150 4000 80
RL-HMD70A1401H08-850N 1200 150 5000 80
RL-HMD70A1401H08-865N 1280 150 6500 80
RL-HMD100A2801H016-827N D100 200-240 ＞0.5 16 2080 130 2700 80
RL-HMD100A2801H016-830N 2240 140 3000 80
RL-HMD100A2801H016-840N 2400 150 4000 80
RL-HMD100A2801H016-850N 2400 150 5000 80
RL-HMD100A2801H016-865N 2400 150 6500 80
RL-HMD150A2802H024-827N D150 200-240 ＞0.5 24 3120 130 2700 80
RL-HMD150A2802H024-830N 3360 140 3000 80
RL-HMD150A2802H024-840N 3600 150 4000 80
RL-HMD150A2802H024-850N 3600 150 5000 80
RL-HMD150A2802H024-865N 3600 150 6500 80
RL-HMD180A2803H032-827N D180 220-240 ＞0.5 32 4160 130 2700 80
RL-HMD180A2803H032-830N 4480 140 3000 80
RL-HMD180A2803H032-840N 4800 150 4000 80
RL-HMD180A2803H032-850N 4800 150 5000 80
RL-HMD180A2803H032-865N 4800 150 6500 80
