- 220 lm/W High Efficacy
- Macadam 3 steps color bin
- Easy & quick for Parallel or serial wiring
- LED panel is directly connected to AC200-240V

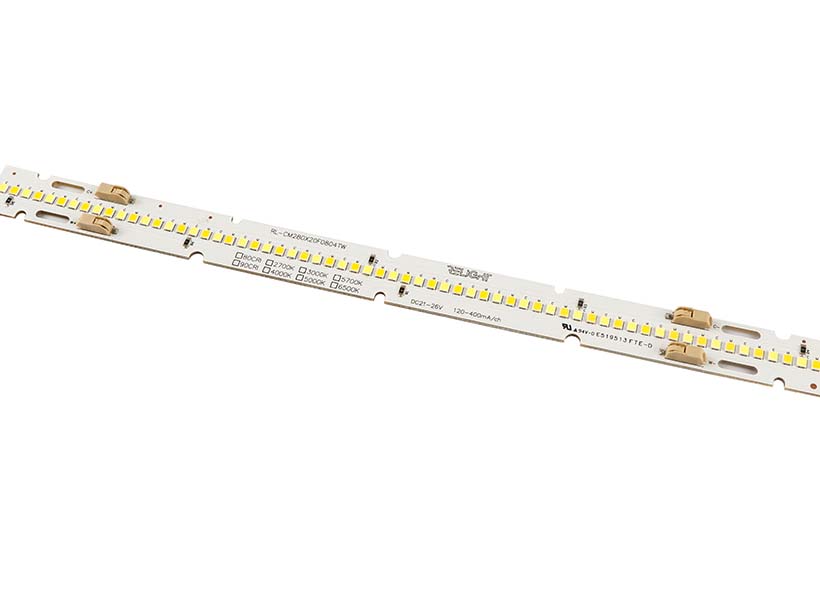

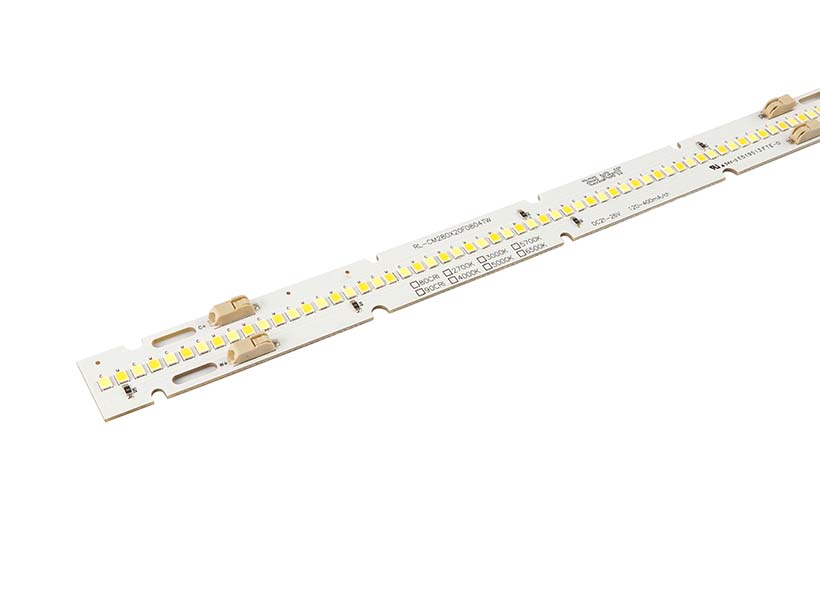

20mm Wide High Efficacy Zhaga——Dual CCT
ODM Customization
Product Description
| P/N | Size | Voltage-Vdc | Current -mA | Power-W | Flux | Efficiency | CCT | CRI | |||
| mm | TYP | MAX | TYP | MAX | TYP | MAX | Lm | Lm/W | K | - | |
| RL-CM70X20F0108H001-82765 | 70X20 | 5.4 | 6 | 270 | 400 | 1.5 | 6 | 285 | 190 | 2700 | 80 |
| 315 | 210 | 6500 | |||||||||
| RL-CM70X20F0108H001-83050 | 300 | 200 | 3000 | ||||||||
| 315 | 210 | 5000 | |||||||||
| RL-CM140X20F0404H003-82765 | 140X20 | 10.8 | 12 | 270 | 400 | 3 | 6 | 570 | 190 | 2700 | 80 |
| 660 | 220 | 6500 | |||||||||
| RL-CM140X20F0404H003-83050 | 600 | 200 | 3000 | ||||||||
| 660 | 220 | 5000 | |||||||||
| RL-CM280X20F0804H006-82765 | 280X20 | 21.6 | 24 | 270 | 400 | 6 | 12 | 1140 | 190 | 2700 | 80 |
| 1320 | 220 | 6500 | |||||||||
| RL-CM280X20F0804H006-83050 | 1200 | 200 | 3000 | ||||||||
| 1320 | 220 | 5000 | |||||||||
| RL-CM560X20F1604H012-82765 | 560X20 | 43.2 | 48 | 270 | 400 | 12 | 24 | 2280 | 190 | 2700 | 80 |
| 2640 | 220 | 6500 | |||||||||
| RL-CM560X20F1604H012-83050 | 2400 | 200 | 3000 | ||||||||
| 2640 | 220 | 5000 | |||||||||
