Home - Product - Led module - DC Linear Module Series

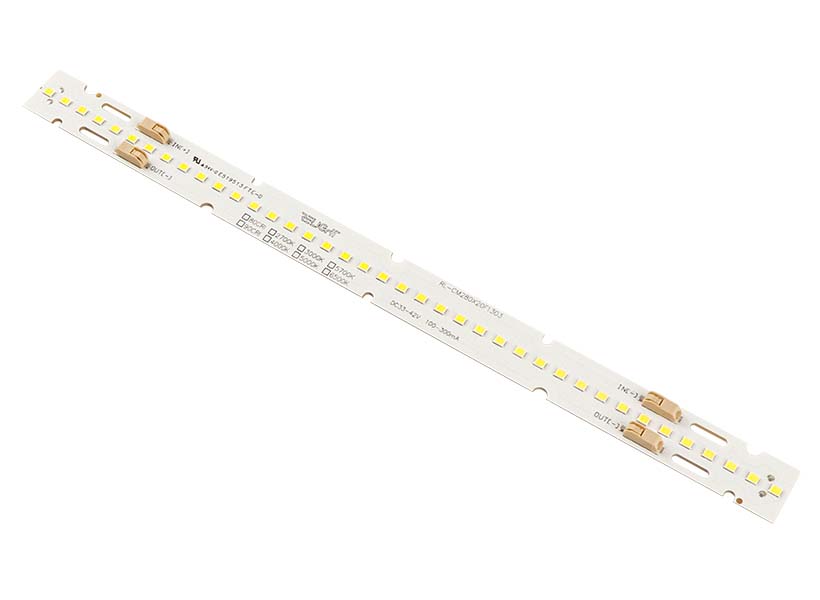

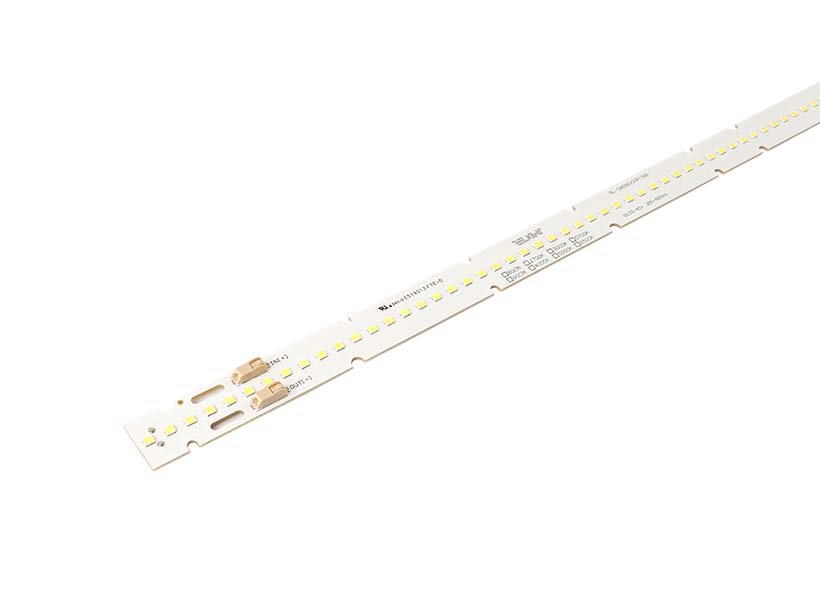

20mm Wide High Efficacy Zhaga——Monochrome

  • 220 lm/W High Efficacy
  • Macadam 3 steps color bin
  • Easy & quick for Parallel or serial wiring
  • LED panel is directly connected to AC200-240V
Product Specifications
ODM Customization

Product Description

P/N Size Voltage-Vdc Current -mA Power-W Flux Efficiency CCT CRI
mm TYP MAX TYP MAX TYP MAX Lm Lm/W K -
RL-CM70X20F1301H001-827 70x20 35 42 45 100 1.5 3 285 190 2700 80
RL-CM70X20F1301H001-830 300 200 3000 80
RL-CM70X20F1301H001-840 330 220 4000 80
RL-CM70X20F1301H001-850 330 220 5000 80
RL-CM70X20F1301H001-865 330 220 6500 80
RL-CM140X20F1302H003-827 140x20 35 42 90 200 3 6 570 190 2700 80
RL-CM140X20F1302H003-830 600 200 3000 80
RL-CM140X20F1302H003-840 660 220 4000 80
RL-CM140X20F1302H003-850 660 220 5000 80
RL-CM140X20F1302H003-865 660 220 6500 80
RL-CM280X20F1303H006-827 280x20 35 42 180 300 6 12 1140 190 2700 80
RL-CM280X20F1303H006-830 1200 200 3000 80
RL-CM280X20F1303H006-840 1320 220 4000 80
RL-CM280X20F1303H006-850 1320 220 5000 80
RL-CM280X20F1303H006-865 1320 220 6500 80
RL-CM560X20F1306H012-827 560x20 35 42 360 600 12 24  2280 190 2700 80
RL-CM560X20F1306H012-830 2400 200 3000 80
RL-CM560X20F1306H012-840 2640 220 4000 80
RL-CM560X20F1306H012-850 2640 220 5000 80
RL-CM560X20F1306H012-865 2640 220 6500 80
