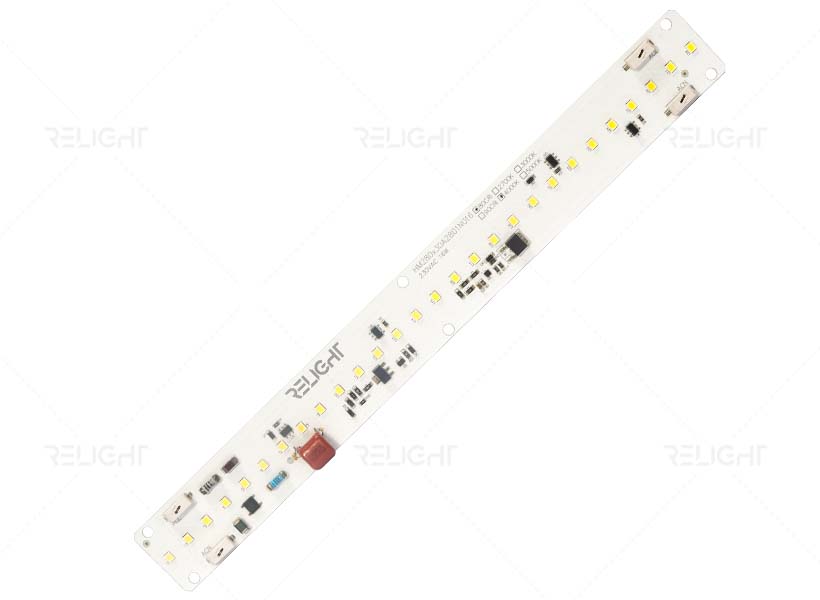

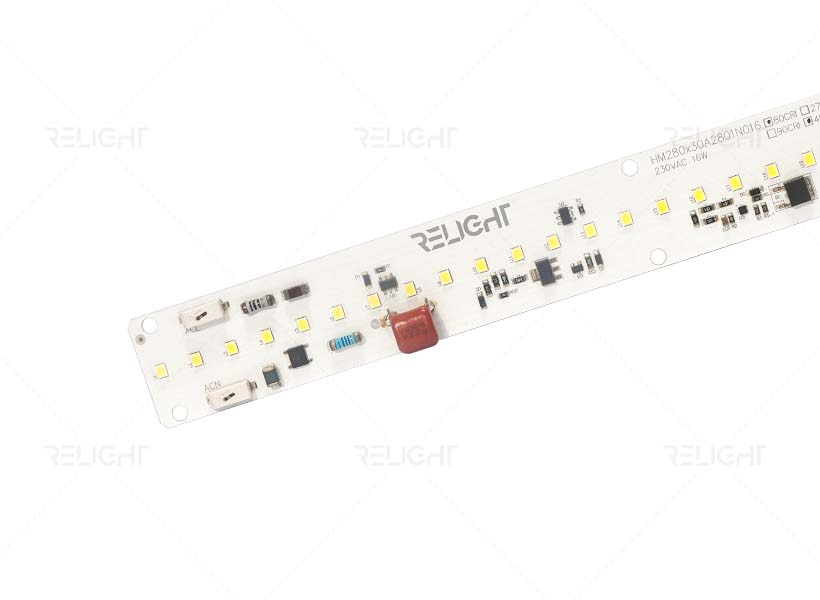

TB Linear Series

  • Compatible with TRIAC dimming.
  • High-efficacy High-compatibility Solution.
  • THD compliance, surge withstand, conducted emissions compliance.
Product Specifications
ODM Customization

Product Description

P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
mm Vac W - LM LM/W K - -
RL-HM280×30A2801H016-827TB 280×30 230 16 0.95 1440 90 2700 80 TRIAC
RL-HM280×30A2801H016-830TB 1520 95 3000
RL-HM280×30A2801H016-835TB 1600 100 3500
RL-HM280×30A2801H016-840TB 1760 110 4000
RL-HM280×30A2801H016-850TB 1760 110 5000
RL-HM280×30A2801H016-857TB 1760 110 5700
RL-HM280×30A2801H016-865TB 1600 100 6500
